Bacharach's default blind window
16 zones ร 15-minute default hold = 240 minutes between readings. Most defrost leaks are never captured.
R-404A lost in one missed window
At 0.5 lbs/hr over 4 hours = 2 lbs. At GWP 3,922, that's 7.8 metric tons COโe โ undetected.
Annual refrigerant loss, typical supermarket
Leaks are multiple, distributed, and often concurrent โ requiring all zones monitored at once.
| Parameter | AKO โ Passive Diffusion | Bacharach โ Aspirated |
|---|---|---|
| Monitoring mode | โ Continuous, simultaneous โ all zones at once | โ Sequential โ 1 zone at a time |
| Default cycle time | โ No cycle โ reads every second | โ 15 min/zone default โ 4-hour full cycle (16 zones) |
| MDL sensitivity | โ 1 ppm NDIR | 1 ppm NDIR (diluted by distance before reaching port) |
| Coverage per device | โ ~7,854 ftยฒ (50-ft radius) | โ ~1 ftยฒ at the port at any moment |
| Sensor location | โ Inside the risk zone | Machine room โ gas dilutes before reaching port |
| Concurrent leak detection | โ All zones simultaneously | โ Only active zone detected during its turn |
| Single point of failure | โ Distributed โ no central failure | โ Central pump + sensor affects all zones |
| IT / network required | โ NB-IoT cellular โ zero customer network | โ BMS/BAS โ triggers IT security review |
| Deployment timeline | โ Same-day โ no tube runs, no ceiling access | Weeks โ up to 1,200 ft of tube, specialist contractor |
| Maintenance | โ Annual calibration only | Pump testing, filter replacement, tube cleaning + calibration |
| Operating temperature | โ Down to โ40ยฐC in-zone | Machine room temperatures โ not exposed to zone extremes |
ฯ ร 50ยฒ = 7,854 ftยฒ
School bus floor area:
50 ft ร 8 ft = 400 ftยฒ
Buses per AKO device:
7,854 รท 400 = โ19 buses
Bacharach port capture:
ยผ" tube aspiration physics โ ~1 ftยฒ
"If the end of the tube is not at the exact point of the leak, the system reads a diluted concentration."
โ Bacharach's own installation guide
AKOGAS Universal NDIR HFC Detector
Engineered for HFCs, HCFCs, and modern low-GWP alternatives including R-32, R-454B, R-452A, and A2L blends. UL-listed and compliant with UL 60335-2-40. Post-purchase reconfiguration available as refrigerant profiles evolve.

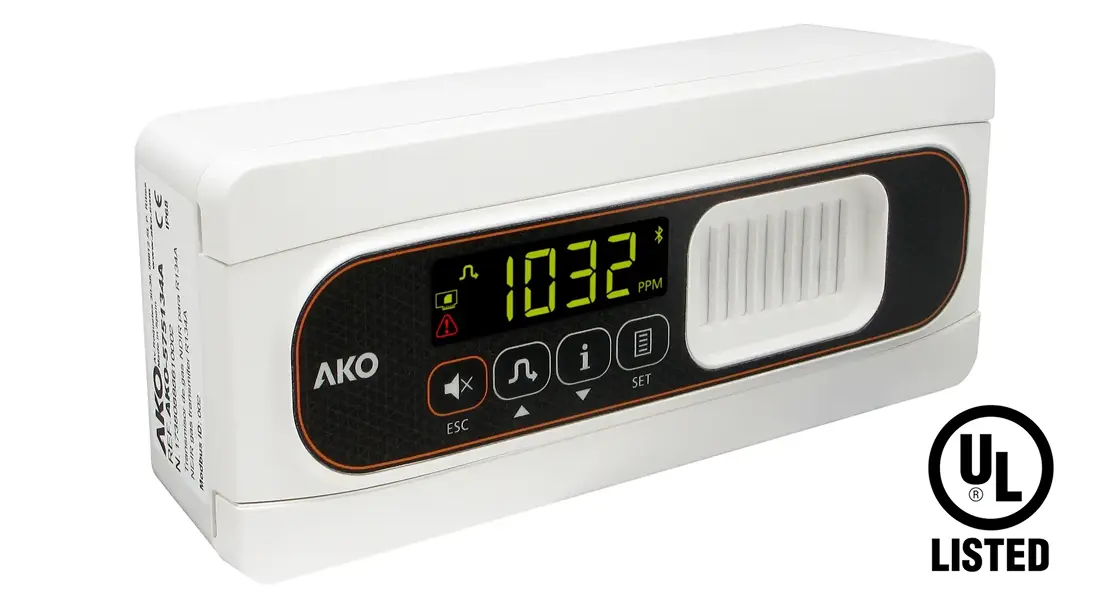

AKOGAS COโ NDIR Detector
Dedicated to COโ (R-744) refrigeration systems in supermarkets, cold storage, and industrial refrigeration. NDIR sensor calibrated specifically to COโ absorption characteristics for higher precision in natural refrigerant applications.
240ร Faster Response
AKO detects in ~60 seconds. Bacharach's default 15-min/zone hold on a 16-zone system means 4 hours between readings. A full leak cycle can complete undetected.
Sensor at the Risk Zone
AKO sensors live inside the case or walk-in โ centimeters from the evaporator. Gas dilutes with every foot of distance before reaching the Bacharach port in the machine room.
All Zones, All the Time
Concurrent leaks in two zones? AKO catches both immediately. Bacharach catches the one it happens to be sampling. 15 of 16 zones are always between readings.
Zero IT Footprint
NB-IoT means no network credentials, no firewall rules, no PCI-DSS review. Bacharach BMS integration typically triggers 2โ8 weeks of IT security review before go-live.
Minimal Maintenance
No pump. No filters. No tube network to clean. AKO requires annual calibration only. Bacharach requires pump testing, tube cleaning, filter replacement, and calibration โ all separately.
Operates to โ40ยฐC
AKO sensors are rated for in-zone deployment in frozen walk-ins down to โ40ยฐC. Bacharach's sensor sits in the machine room โ protected from the conditions where risk is highest.
AKO uses passive diffusion โ the sensor is directly exposed to ambient air inside the refrigerated zone. Refrigerant molecules migrate naturally through molecular diffusion and air convection. The NDIR sensor reads gas concentration continuously. No pump, no tube, no cycle needed.
Yes โ and we’ve built in a conservative floor. Even at 60 seconds for AKO (accounting for the IP68 membrane’s gas diffusion delay), Bacharach’s default cycle is 4 hours = 14,400 seconds. 14,400 รท 60 = 240ร. The 4-hour figure is in Bacharach’s own manual and doesn’t move.
MSA Safety’s whitepaper does claim this for small enclosed spaces. However, supermarket walk-ins are typically 50mยณ+ with frequent door activity. AKO’s in-zone sensor retains its proximity advantage. Bacharach’s response-time limitation applies regardless of space size.
The AKOGAS Universal NDIR covers HFCs (R-404A, R-448A, R-449A), HCFCs, HFOs, and A2L blends (R-32, R-454B, R-452A). A dedicated COโ detector is available for R-744 systems. Post-purchase reconfiguration allows profile updates as your portfolio changes.
Site survey, hardware, installation, AKONET.Cloud 24/7 monitoring, annual calibration, compliance reporting, and ongoing support โ all as a managed service. NB-IoT connectivity means zero IT involvement on your end.
AKO detectors are UL-listed and compliant with UL 60335-2-40. Both HFC and COโ models meet EPA Section 608 monitoring requirements for commercial refrigeration systems in the USA.
